Garage for cars and in the parking lot. Practical and cheap car protection!
Product Description
| Product Description | |
| Superior roofing material | Using PVDF1100g tensile membrane, it is durable and has super self-cleaning function |
| Roof frame | Aluminum alloy special shape outer frame (2.85 kg/m), stainless steel frame F38h2.0 |
| Main body | Roof beam and main frame beam 60x120x4.0, front structural front beam 50x100x4.0, frame structure, rear beam 60x80x4.0, main frame support 50x100x4.0,< br />the above materials are all hot dip galvanized materials. |
| Links | F32x3.0 seamless steel tube with stainless steel screws on both ends, which ensures strength and realizes length adjustment |
| Steel plate for frame connection | The 10mm steel plate is laser cut and shaped, and the multi-space combination has the function of adjusting the overall height. |
| Component | The 8mm steel plate is laser cut and machined, and the seal head is made from denaturing nylon mold parts to ensure assembly accuracy and good looks. |
| Description | The components are standardized and cast, the metal parts are galvanized, the surface is electrostatically coated with epoxy resin, the components are packed and transported, and the entire assembly is realized on site. There is no need to bury it beforehand, no welding, painting or direct assembly. |
| Structural strength | Wind resistance level 10, snow load 30cm |
| Color | Yellow, blue, brown, dark green, gray, white, dark gray |
| Installation | Comes with an installation manual. It can usually be installed by two people in three hours |
| Maintenance | No maintenance required. The surface of the product is aluminum alloy and hot-dip galvanized, which will never rust. You only need to remove the snow if there is more than 30cm of snow. |
| Advantages | |
| 1. The center of gravity of the entire cargo vehicle is in the center, equipped with balanced steel beams, which gives special stability, wind resistance 12, snow bed 35cm. 2. Aluminum alloy upper frame, stainless steel decorative bracket and tension membrane are perfectly combined which is simple and elegant, smarter and more durable. 3. The surfaces of the steel structure of the frame, steel plates and parts of the steel cable are hot-dip galvanized and electrostatically sprayed to ensure a solid structure and improve the external quality. 4. Product modularization, accessory standardization and quality control from parts to total connection nodes ensure perfect on-site assembly without secondary repair. 5. The height of the roof, the position of the slope and the edge of the mouth are adjustable, and the overall moving features make the product have a unique and personalized charm. 6. It is convenient for transportation, and the components are packed in units, which is practical and fast and not easy to damage. 7. Installation is simple and efficient, the self-balancing design requires no embedded parts, and can be assembled and repaired on site. 8. Maintenance-free, aluminum alloys, stainless steel, stretch film, hot-dip galvanizing, electrostatic product features ensure lasting freshness. |
|
| Structure | |
|

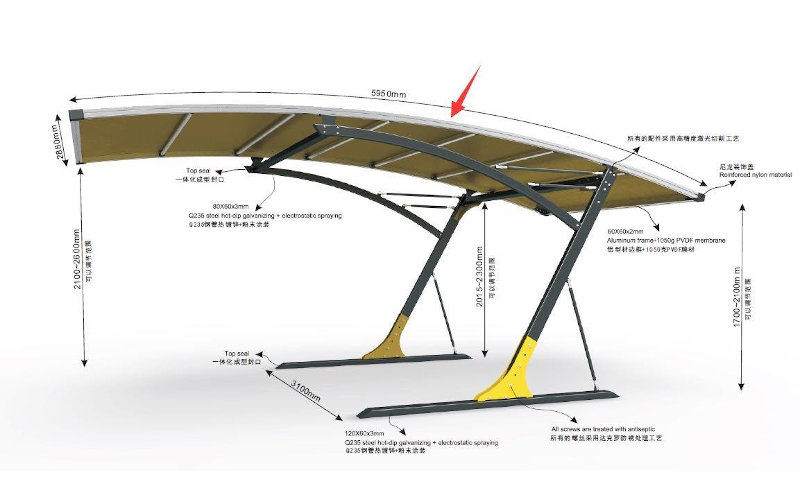

It is made according to the width of the parking space from 2.5 meters to 3 meters, the net height of the rear auxiliary beam of the frame is 2.2 meters from the ground, the front height of the canopy is 2.7 meters (adjustable ± 0.2 ), and the height rear edge of the canopy is 2.0 meters (adjustable ± 0.2). In addition: the height of the rear auxiliary beam from the ground and the height of the front and rear edges of the support can be adjusted to the height of the main frame beam by 0.1 meter. |
|
| Parking place | Surface | Dimensions (Width x Length x Height) |
Note | Pack size | Gross weight |
| One parking space | Max. 18m² | 3100 x 5950 x 2600(mm) | Adjustable height from 2100mm to 2600mm |
2.9 * 0.56 * 0.42m | 340kg |
| Two parking spaces | Max. 36m² | 6000 x 5950 x 2600(mm) | 2.9 * 0.56 * 0.56m | 460kg | |
| Three parking spaces | Max. 54m² | 8900 x 5950 x 2600(mm) | 2.9 * 0.56 * 0.75m | 740kg | |
| Four parking spaces | Max. 72m² | 11800 x 5950 x 2600(mm) | 2.9 * 0.56 * 0.84m | 840kg |
